Plastic Planetary Gearbox

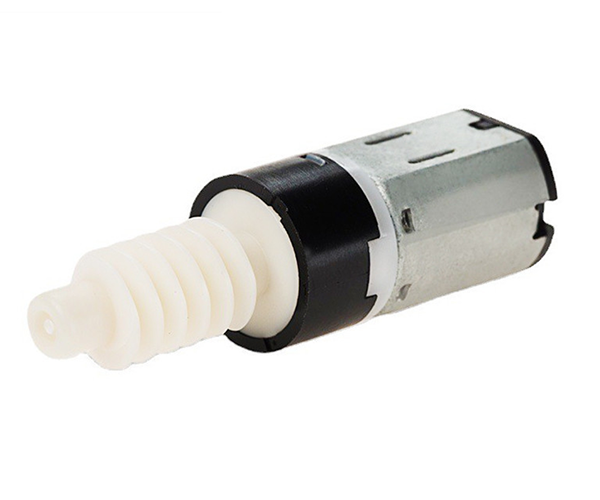

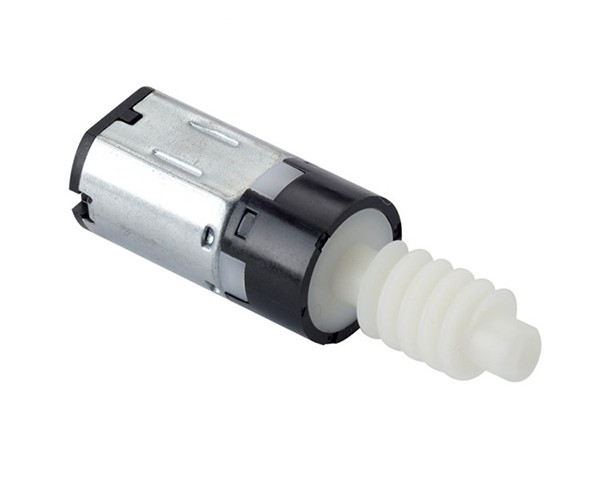

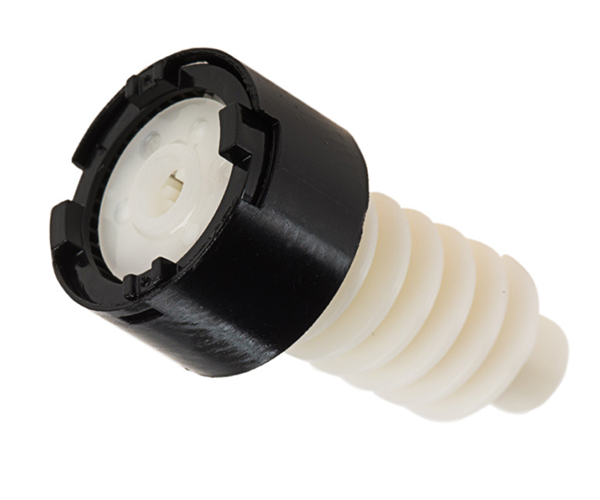

12mm Worm gear motor of the consists of a planetary gearbox and a DC motor with a 12 mm diameter has advantages of high wear resistance, high transmission efficiency, high torque volume ratio, high-temperature resistance and impact resistance
A plastic gearbox motor is a type of gearbox that is made out of plastic. These motors are typically used in applications where weight or space is a concern, such as in small robotic devices. One advantage of using a plastic gearbox motor is that it can be made very light-weight. Additionally, the size of these motors can be easily customized to fit the application. Another advantage of plastic gearbox motors is that they are often less expensive than metal gearbox motors. One downside to using a plastic gearbox motor is that they may not be as durable as metal gearbox motors and may not be able to handle as much torque.

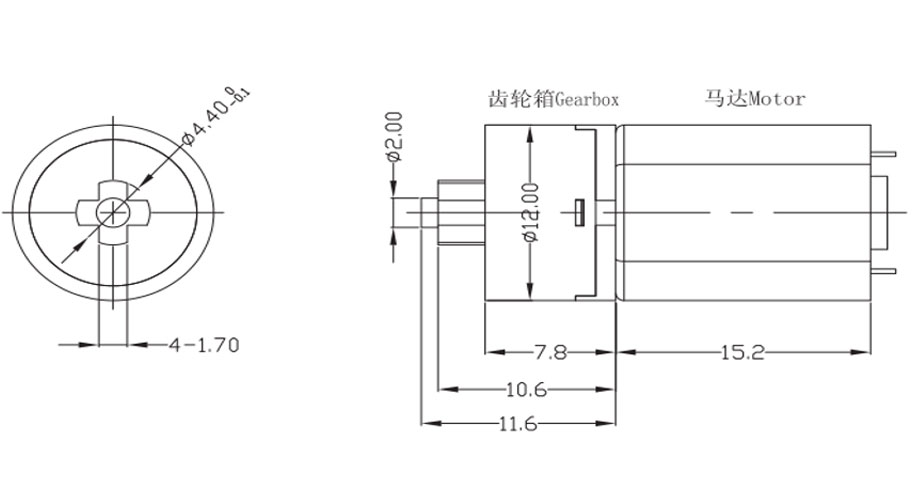

| Product name | 12mm plastic planetary gear reducer | Material | plastic |
| Direction of rotation | CW&CCW | Voltage | 3-12V |
| Motors(optional) | DC brush motor, DC brushless motor stepper motor | Operating temperature range | -20℃-80℃ |
| Product model | Gear Ratio | Rated torque (V) | No-load speed (rpm) | No-load current (mA) | Rated load(g.cm) | Load speed (rpm) | Load current (mA) | Stall torque (g.cm) | Efficiency (%) |
 |
| GB12-120-MD18001-1-M3.0 | 120 | 3 | 110 | 80 | 110 | 92 | 150 | 430 | 60 |
The micro-modulus design is adopted, and the minimum modulus is 0.25 to realize planetary transmission in a limited space, and is processed by high-precision mold equipment and injection molding equipment, which effectively ensures the effective operation of the gearbox

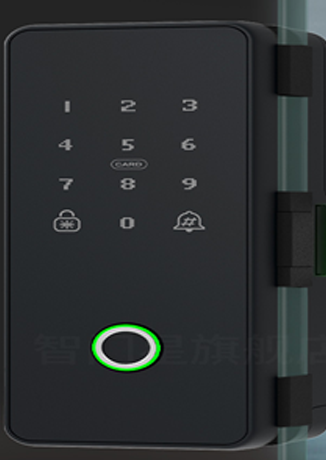

Equipped with a high-speed motor, a 120:1 speed ratio, non-standard modulus, and a structure that realizes small space and large torque output, it is suitable for all kinds of small intelligent device products.
The selection of high-strength, wear-resistant plastic raw materials, the use of tooth design software, the use of non-standard tooth shape, so that the gear strength is better, the life is longer.
13360643171
Sale Hotline:
We can make DC motors below 3v-36v, with power less than 40W and diameter less than 45mm
Our standard gearbox can be matched with other motors The matched brush, brushless, hollow cup and stepping motor need to match the shape of our gearbox, or change the shape of our gearbox Matching with other motors also requires custom proofing, otherwise it will involve low efficiency, large loss and short life
As a gearbox manufacturer with R & D capability, we support customers to provide us with gearbox shape, required reduction ratio and output speed We will develop customized products for you Or you can provide your own R & D products, and we will optimize the structure, production and assembly for you
In order to promote further cooperation between the two sides, it has become a common practice that we provide samples free of charge and you bear the freight But I think if you really care about it, you won t mind spending some sample fees If it is provided for free to every customer who requires us to send samples, it will be a great burden for us If we receive your formal order, we can refund the sample fee We sincerely hope to get your support and understanding on this point
At present, our gear motors have been sold to Japan, Germany, the United States, the United Kingdom, Indonesia, Singapore and other countries Most customers will give me feedback, saying that they operate well, have low noise and large torque, which is exactly the product they are looking for I think this should be the best word of mouth for our products
