Metal Planetary Gearbox

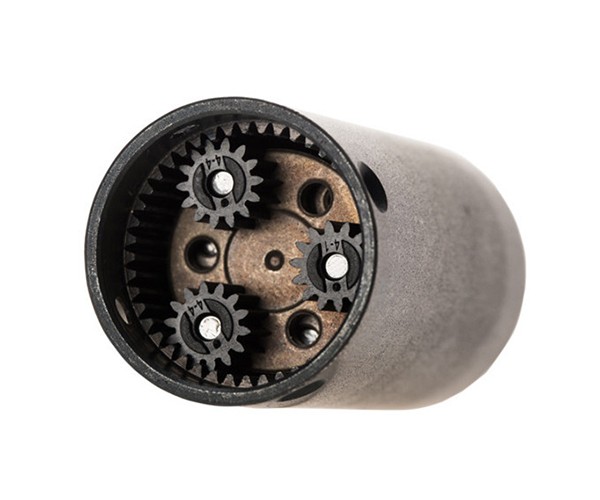

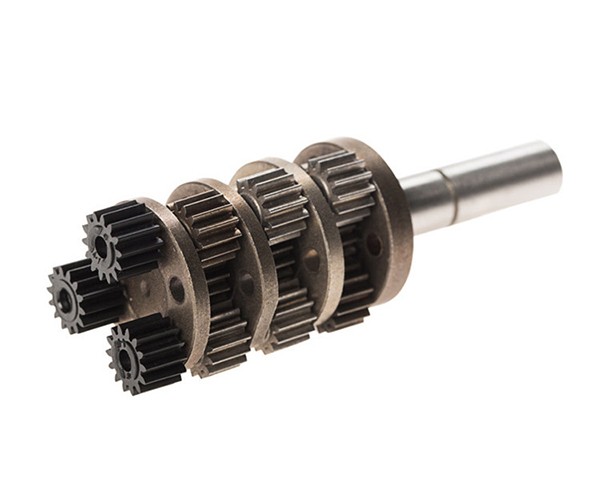

16mm planetary gear motor of the consists of a planetary gearbox and a DC motor with a 16mm diameter has advantages of high wear resistance, high transmission efficiency, high torque volume ratio, high-temperature resistance and impact resistance
| Product name | 16mm reduction gearbox | Material | plastic |
| Direction of rotation | CW&CCW | Voltage | 3-24V |
| Motors(optional) | Hollow Cup Motor, DC Brush Motor, DC Brushless Motor, Stepper Motor | Operating temperature range | -20℃-80℃ |
| Product model | Gear Ratio | Rated torque (V) | No-load speed (rpm) | No-load current (mA) | Rated load(g.cm) | Load speed (rpm) | Load current (mA) | Efficiency (%) | Gearbox length (mm) | Overall length (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| GB16-16-MD18005-2-M | 16 | 5 | 375 | 50 | 130 | 281 | 180 | 73 | 14.8 | 41.8 |
| GB16-24-MD18005-2-M | twenty four | 5 | 250 | 50 | 195 | 187.5 | 180 | 73 | 14.8 | 41.8 |
| GB16-36-MD18005-2-M | 36 | 5 | 166.5 | 50 | 291 | 125 | 180 | 73 | 14.8 | 41.8 |
| GB16-64-MD18005-2-M | 64 | 5 | 93.5 | 55 | 467.2 | 70 | 190 | 65 | 18.1 | 45.1 |
| GB16-96-MD18005-2-M | 96 | 5 | 62.5 | 55 | 700.8 | 46.5 | 190 | 65 | 18.1 | 45.1 |
| GB16-144-MD18005-2-M | 144 | 5 | 41.5 | 55 | 1051.2 | 31 | 190 | 65 | 18.1 | 45.1 |
| GB16-216-MD18005-2-M | 216 | 5 | 27.5 | 55 | 1576.3 | 20.5 | 190 | 65 | 18.1 | 45.1 |
| GB16-256-MD18005-2-M | 256 | 5 | 23.5 | 60 | 1689 | 17.5 | 200 | 58 | 21.4 | 48.4 |
| GB16-384-MD18005-2-M | 384 | 5 | 15.5 | 60 | 2534 | 11.5 | 200 | 58 | 21.4 | 48.4 |
| GB16-576-MD18005-2-M | 576 | 5 | 10.5 | 60 | 3802 | 7.8 | 200 | 58 | 21.4 | 48.4 |
| GB16-864-MD18005-2-M | 864 | 5 | 7 | 60 | 5702 | 5.2 | 200 | 58 | 21.4 | 48.4 |
| GB16-1296-MD18005-2-M | 1296 | 5 | 4.5 | 60 | 8554 | 3.5 | 200 | 58 | 21.4 | 48.4 |
We can make DC motors below 3v-36v, with power less than 40W and diameter less than 45mm
Our standard gearbox can be matched with other motors The matched brush, brushless, hollow cup and stepping motor need to match the shape of our gearbox, or change the shape of our gearbox Matching with other motors also requires custom proofing, otherwise it will involve low efficiency, large loss and short life
As a gearbox manufacturer with R & D capability, we support customers to provide us with gearbox shape, required reduction ratio and output speed We will develop customized products for you Or you can provide your own R & D products, and we will optimize the structure, production and assembly for you
In order to promote further cooperation between the two sides, it has become a common practice that we provide samples free of charge and you bear the freight But I think if you really care about it, you won t mind spending some sample fees If it is provided for free to every customer who requires us to send samples, it will be a great burden for us If we receive your formal order, we can refund the sample fee We sincerely hope to get your support and understanding on this point
At present, our gear motors have been sold to Japan, Germany, the United States, the United Kingdom, Indonesia, Singapore and other countries Most customers will give me feedback, saying that they operate well, have low noise and large torque, which is exactly the product they are looking for I think this should be the best word of mouth for our products
